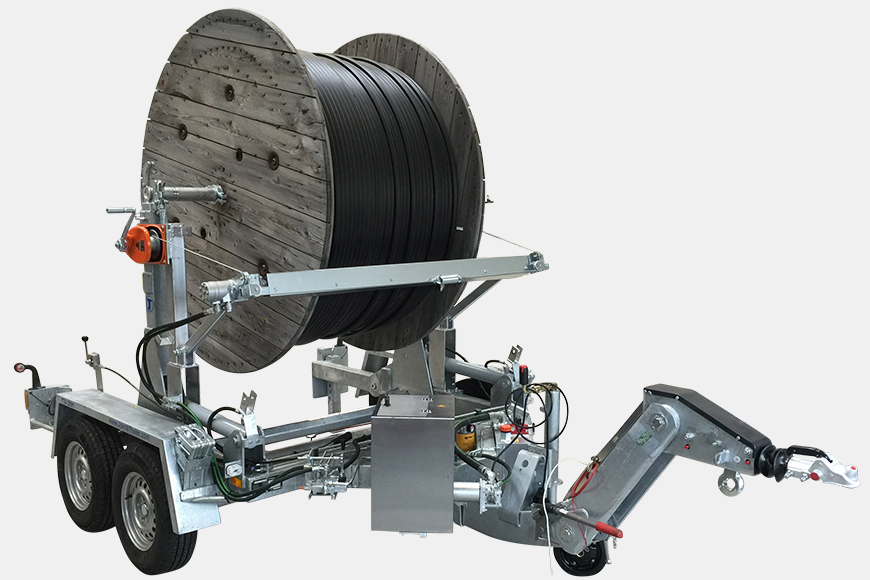

Thaler TTA 2091 Cable Drum Trailer


To enquire about Thaler TTA 2091 Cable Drum Trailer please call the number below or fill in our short enquiry form:

telephone icon  01226 785 722

Make an Enquiry

Download PDF

Overview

Hydraulic version, loading capacity 2620 kg

Suitable for lifting and transport of multiple PVC pipes for glass fibre and other applications up to max. ring ø 3700 mm. Tilting frame operated via manual hydraulic pump. Tandem axle chassis with overrunning brake, height adjustable drawbar with ball- and DIN coupling, coupling height 400-1100 mm, TÜV approval if required, 80 km/h, lighting system 12 Volt, galvanized as standard equipment.



Optional Accessories

  • Straight drawbar with ball type coupling
  • NATO ring eye
  • Lighting system 24 Volt
  • Hydraulic lifting and lowering of cable drum by independent petrol engine, additional to standard hand pump
  • Hydraulic drum drive for reeling and unreeling of cable frum
  • Additional supply of all kinds of drive and lifting systems by power take-off from towing vehicle
  • Light metal axle with bush bearings, dia. 75 mm including fixing collars
  • Container steel body
  • Tube coil frame type RAW 2200
  • Transport and unreeling basket for PVC tubes
  • Transport and coiling device for 10 micro tube drums
  • Loading traverse for 9 micro tube drums



If you are interested in the Thaler Trailers then please download, complete and send back the below application check list with all your requirements.

Application Check List – Trailers

Specifications

Type Loading capacity Empty weight Adm. total weight Min/Max Drum dia. Max Drum width Drawbar Length Width Height
TTA 2091 B 2620 kg 880 kg 3500 kg 1000 – 2800 mm 1600 mm Height adjustable 4660 mm 2550 mm 2060 mm
