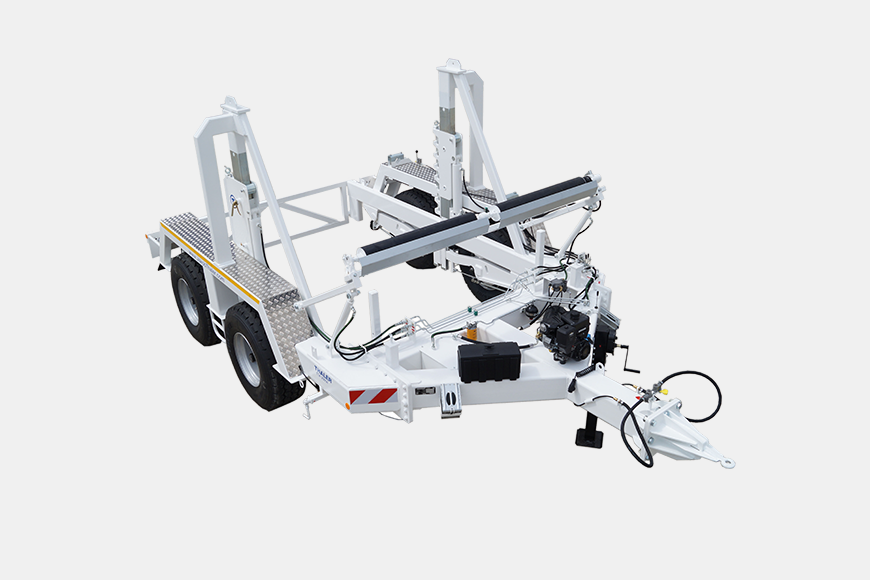

Thaler TTA 25014 Cable Drum Trailer


To enquire about Thaler TTA 25014 Cable Drum Trailer please call the number below or fill in our short enquiry form:

telephone icon  01226 785 722

Make an Enquiry

Download PDF

Overview

Hydraulic version, loading capacity 25000 kg

U-shaped heavy-duty construction is built for big cable drums up to a max. weight of 25 tons and a max. dia. of 4.600 mm. This trailer will be coupled to the towing vehicle by straight drawbar with ring pulling eyelet.
Hydraulic lifting and lowering of the cable drum, driven by 7 kW petrol engine, twin line air brake system without ABS, manual braking force regulator, lighting system 12 or 24 Volt as standard equipment.



Optional Accessories

  • NATO ring eye instead of DIN
  • Hydraulic lifting and lowering of cable drum by independent petrol or diesel engine, additional to standard hand pump
  • Hydraulic drum drive or reeling and unreeling of cable drum
  • Additional supply of all kinds of drive and lifting systems by power take-off from towing vehicle
  • Light metal axle with bush bearings, dia. 60, 75, 90 or 105 mm including fixing collars
  • Tube coil frame type RAW 2200
  • Transport and unreeling basket for PVC tubes
  • Lighting system 12 Volt
  • Hydraulic adjustable loading width



If you are interested in the Thaler Trailers then please download, complete and send back the below application check list with all your requirements.

Application Check List – Trailers

Specifications

Type Loading capacity Empty weight Adm. total weight Min/Max Drum dia. Max Drum width Length Width Height
TTA 2086 15700 kg 3500 kg 19200 kg 2200 – 3600 mm 1580 mm 6500 mm 2550 mm 2300 mm
TTA 25014 EX 25000 kg 4200 kg 24200 kg 2400 – 4600 mm 2700 mm* 7400 mm 3000 mm* 2300 mm

*Depending on your technical requirement
