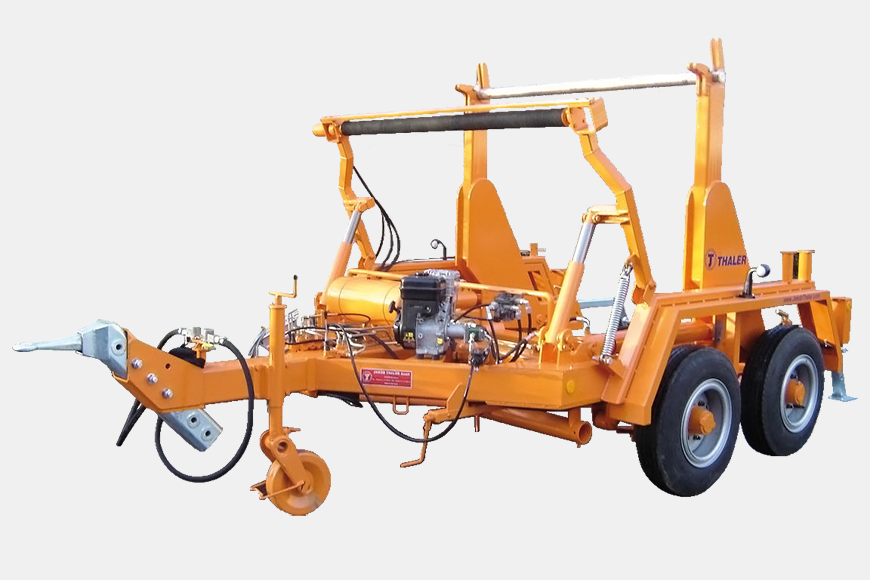

Thaler TTA 6008K Cable Drum Trailer


To enquire about Thaler TTA 6008K Cable Drum Trailer please call the number below or fill in our short enquiry form:

telephone icon  01226 785 722

Make an Enquiry

Download PDF

Overview

Hydraulic version, TTA 6008 wit loading capacity 6700 kg and TTA 8008 with loading capacity 8000 kg

Equipped with hydraulically driven tilting frame which swing the drum to be loaded into the trailer. The hydraulic supply is effected by the pulling vehicle.

TTA 6008 K and 8008 K with tandem axle chassis, air pressure brake system with ABS, TÜV approval if required, 80 km/h, lighting system 24 Volt, orange colour RAL 2011 as standard equipment.



Optional Accessories

  • NATO ring eye
  • Hydraulic lifting and lowering of cable drum by independent petrol engine
  • Hydraulic drum drive for reeling and unreeling of cable drum by independent petrol engine
  • Light metal axle with bush bearings, dia. 75 mm, including fixing collars for type TTA 6008 K and dia. 90 mm for TTA 8008 K
  • Container steel body from 3-9 m³
  • Cable trailer in galvanized version instead of paint
  • Lighting system 12 Volt

If you are interested in the Thaler Trailers then please download, complete and send back the below application check list with all your requirements.

Application Check List – Trailers

Specifications

Type Loading capacity Empty weight Adm. total weight Min/Max Drum dia. Max Drum width Drawbar Length Width Height
TTA 6008 K 6900 kg 1900 kg 8800 kg 1600 – 3200 mm 1630 mm Height adjustable 5250 mm 2550 mm 2455 mm
TTA 8008 K 8200 kg 2400 kg 10600 kg 1600 – 3200 mm 1600 mm Height adjustable 5600 mm 2550 mm 2530 mm
