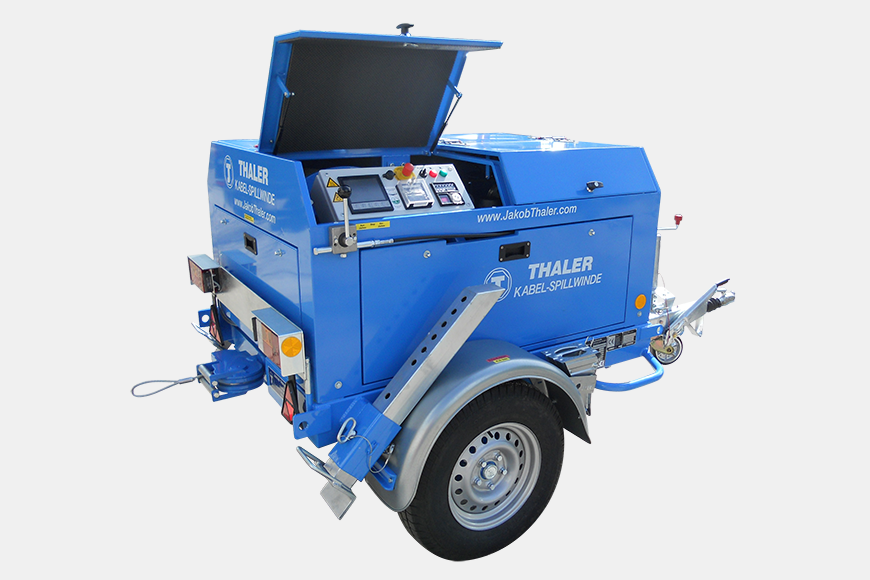

Thaler Line 2000 Cable Winch


To enquire about Thaler Line 2000 Cable Winch please call the number below or fill in our short enquiry form:

telephone icon  01226 785 722

Make an Enquiry

Download PDF

Overview

Line 2000 between 1,000 and 3,000 daN Pulling Force with up to 2,000m Rope Length

This Thaler Cable Capstan Winch range impresses due to its compact construction in combination with a high pulling force. With the range consisting of between 1 to 20 ton of pulling force available. The machine is representing the latest modern technical standard in the field of hydraulic cable pulling winches built in accordance with the regulations of the cable industry. It is constructed under strict compliance with the EC machinery directive and is CE marked.



Standard Equipment Optional Equipment
          Double capstan system, both capstan heads are driven           Other measuring systems like TM 3001
          Hydrostatic drive           Printer for the electronic measuring system TM 3000 /1
          Petrol or diesel engine           Petrol or electric engine
          500 m usable rope length, bigger rope lengths upon request           Remote control by cable or radio transmission
          Drum capacity for bigger rope lengths           Height adjustable drawbar, with ring eye and ball coupling
   KE-SP 2010, max. rope length up to 2000 m, ø 6,5 mm           Winch on basic frame for mounting on trucks
   KE-SP 2020, max. rope length up to 1500 m, ø 8,2 mm           Other colours upon request
   KE-SP 2030, max. rope length up to 1000 m, ø 9,5 mm           Biodegradable hydraulic oil
          Lockable steel sheet hood with central crane hook           Deflection boom
          Automatic rope guidance to the drum
          Pulling force control by electronic measuring system with USB port and stick –                          SYSTEM TM 3000®
          Single axle chassis with overrunning brake, height adjustable drawbar and jockey                    wheel
          Painting: RAL 5015 (blue)



If you are interested in the Thaler Cable Capstan Winches then please download, complete and send back the below application check list with all your requirements.

Application Check List – Winches

Specifications

KE-SP 2010 KE-SP 2020 KE-SP 2030
Pulling Force 1,000 daN 2,000 daN 3,000 daN
Rope Length 500 m (max 2000 m) 500 m (max 1500 m) 500 m (max 1000 m)
Rope Diameter 6,5 mm 8,2 mm 9,5 mm
Max Rope Speed 0 – 65 m/min 0 – 65 m/min 0 – 65 m/min
Drive Hydraulic Hydraulic Hydraulic
Drive Motor
Power
Petrol, 2-Cylinder
11,8 kW
Petrol, 2-Cylinder
11,8 kW
Diesel, 2-Cylinder
15,6 kW
Motor Cooling System Air Air Water
Chassis Single Axle
Dimensions L x W x H 3250 x 1650 x 1450 mm
Weight With 500 m Rope 1,180 kg 1,230 kg 1,280 kg
