Overview

EasyDrill Limited is the only company (world-wide) specialising in designing and building Directional Drills as attachments, via a quick hitch, for mini excavators.

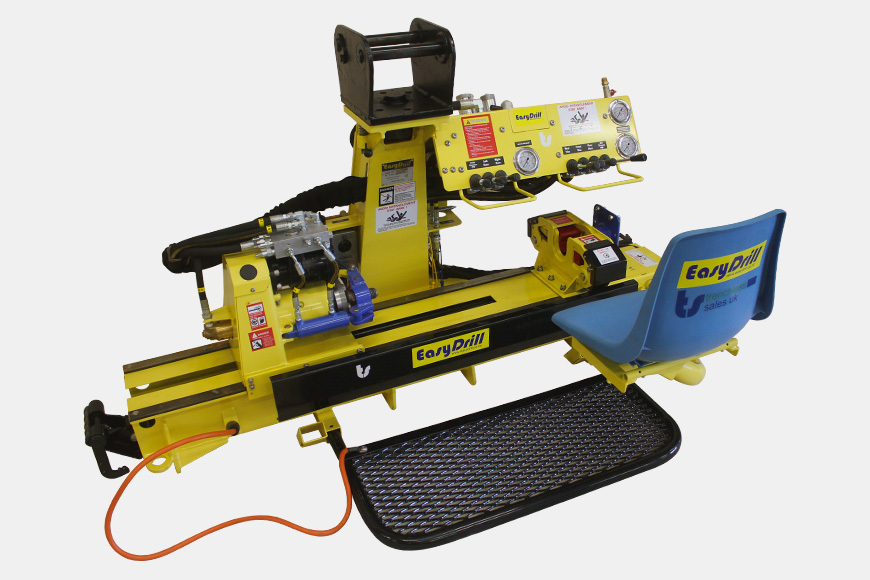

The EasyDrill FD10G horizontal directional drill is preferred by drillers for installing underground services such as fibre optic broadband, gas, power and other services because of its efficiency, cost effectiveness and versatility.

Designed as an attachment via a quick hitch for mini excavators, the EasyDrill has amazing and unrivalled thrust and pull back power for a drill of its size.

  • Pit / Surface Launched
  • Quick Hitch Attachment
  • Small & Robust
  • Finance Available

Specifications

Specifications:
Thrust 8,000 lbs 3,628 kgs
Pull Back 10,500 lbs 4,764 kgs
Rotary Torque 1,225 ft/lbs 1660 Nm
Spindle Speed 0 – 110 rpm 0 – 110 rpm
Drilling Fluid (pressure) 0 – 500 psi 0 – 31 bar
Drilling Fluid Flow 0 – 13 gpm 0 – 40 lpm

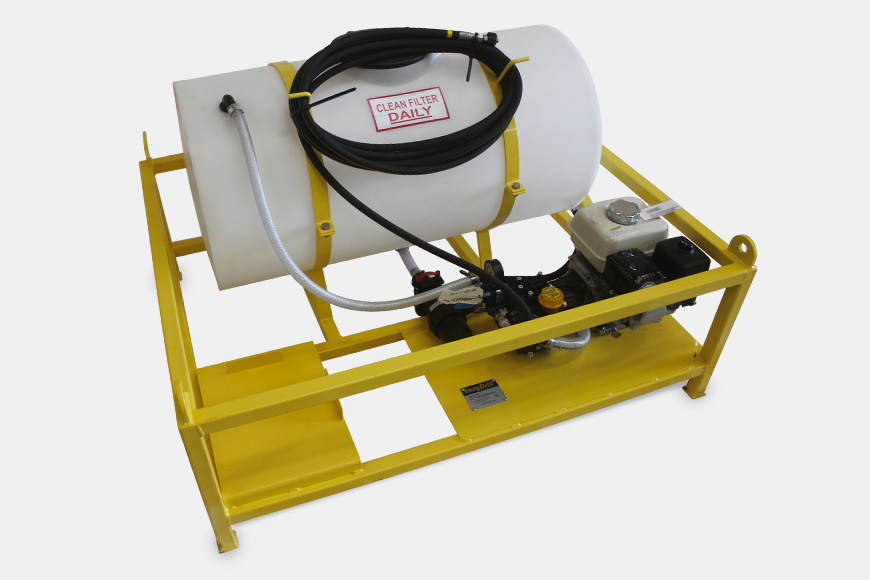

Drill Fluid Tank Capacity 80 gallon 300 litres

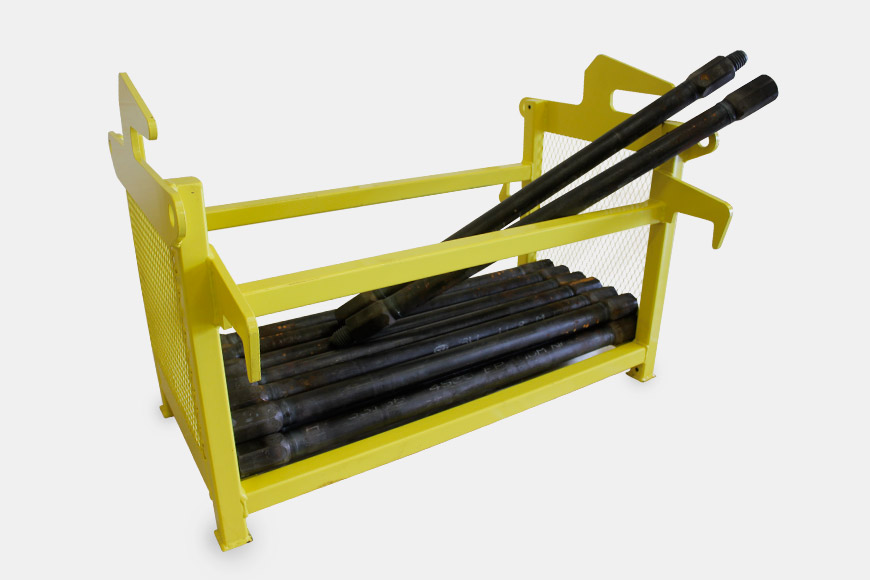

Drill Rods (shoulder to shoulder) 36.6 “ 93 cm
Hydraulic Requirements:
Oil Flow 16 – 21
gpm
60 – 80
lpm
Oil Pressure 2500
psi
200
bar
