Ancillary HDD Equipment


To enquire about Ancillary HDD Equipment please call the number below or fill in our short enquiry form:

telephone icon  01226 785 722

Make an Enquiry

Download PDF

Overview

IDS Specialised Back Reaming Systems

‘A comprehensive range of back reaming solutions, whatever the rig, whatever the ground conditions’

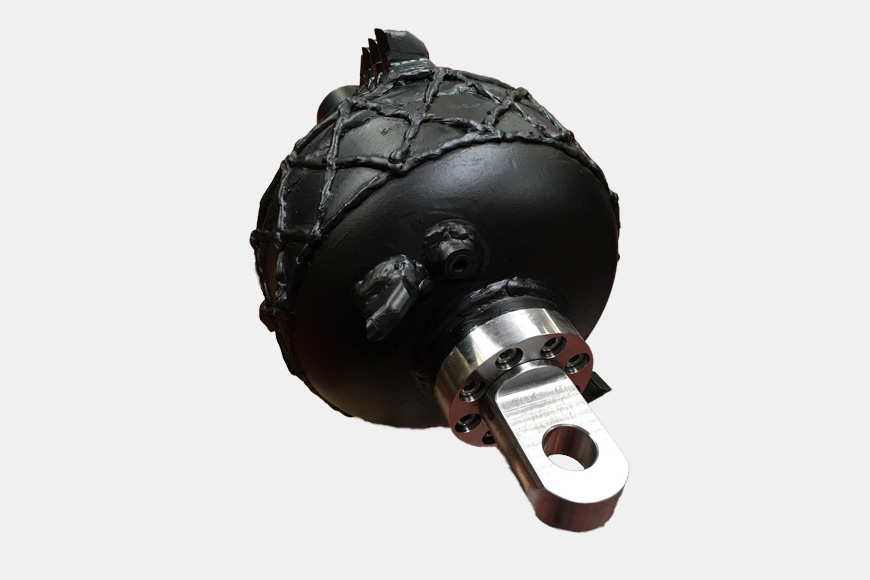

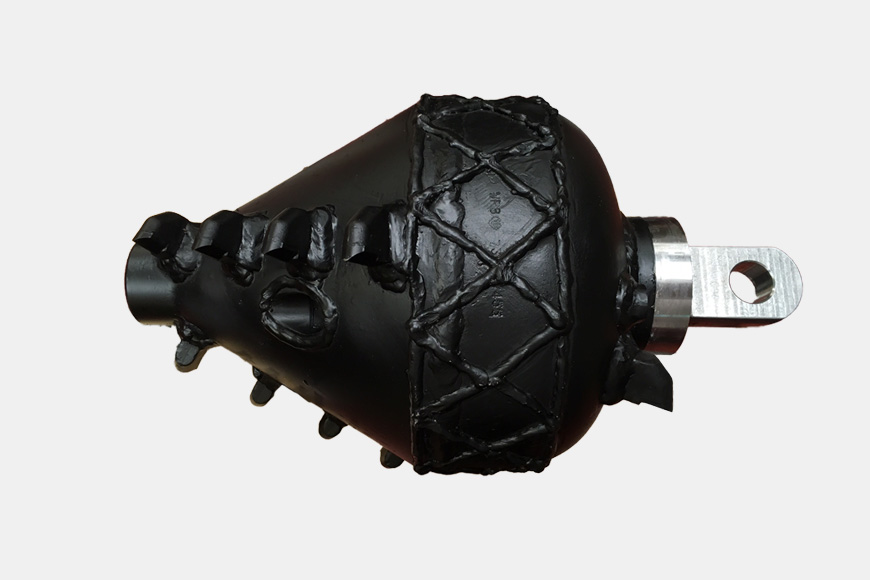

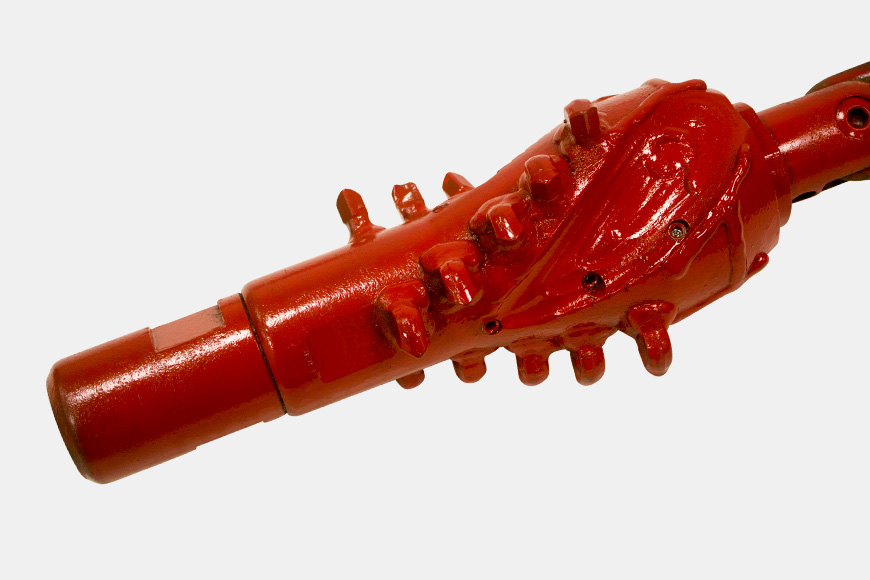

IDS H-Series Fluted Reamers

For Small to Mid-Sized Rigs

Features:

  • 30º tapered body for highly effective cutting and compaction
  • Available with a range of threads and back-end connections
  • Forward and rear facing jets with replaceable Jet Nozzles
  • TC rock-cutting teeth
  • Fluted body for effective displacement of cuttings
  • Available in standard sizes 8” (200mm) – 20” (500mm) diameter

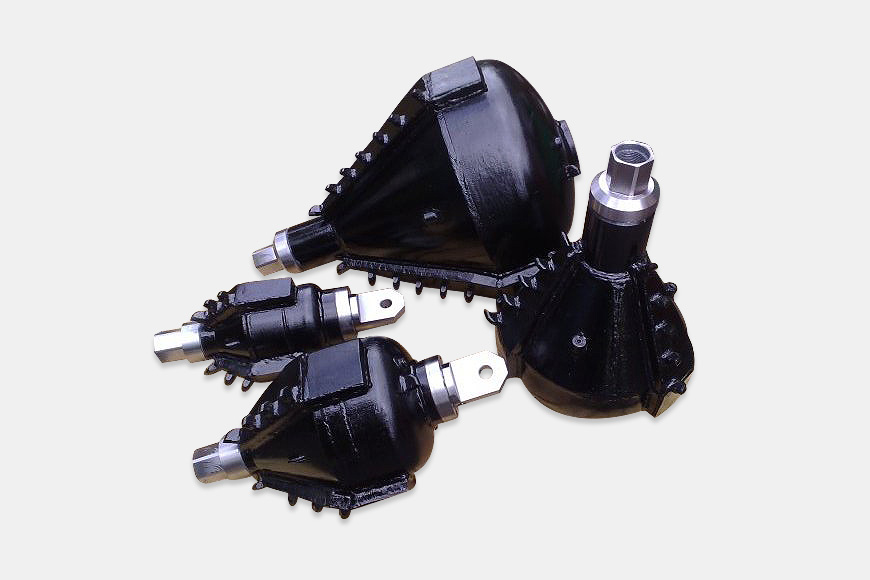

IDS ‘H3’ Displacement Reamer

For Small to Mid-Sized Rigs

Features:

  • Open-body design with 30º tapered cutting arms for displacement (rather than compaction) of cuttings and superb mixing action
  • Available with a range of threads and back-end connection including pulling eyes or threads
  • Forward and rear-facing jets with replaceable Jet Nozzles
  • TC rock-cutting teeth
  • Available in standard sizes 8” (200mm) – 20” (500mm) diameter

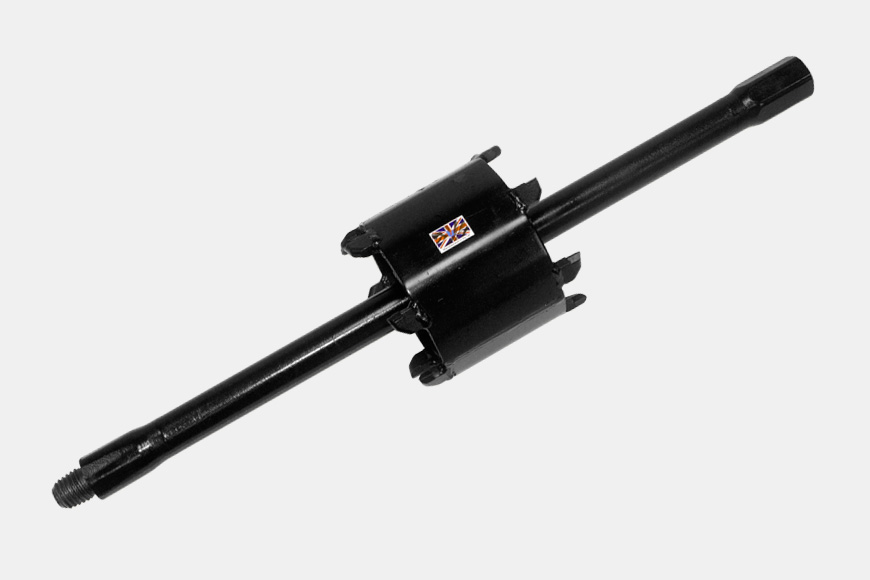

IDS Barrel Reamer

For Medium to Large-Sized Rigs

Features:

  • 30º tapered body (forward and rear)
  • Available with a range of API or other connections (API connections produced utilising official tooling and gauges)
  • Replaceable TC rock-cutting pick teeth
  • Forward and rear facing jets with replaceable IDS TC Jet Nozzles
  • Available in standard sizes from 12” (300mm) diameter
  • One-piece central mandrels produced to API drill collar specifications
  • Welded in compliance with API Recommended Practice 5C6 (First Edition Dec. 1996)



IDS Fly Cutter

For Medium to Large-Sized Rigs

Features:

  • Open-bodied, three-armed design for highly effective cutting and displacement
  • Available with a range of API or other connections (API connections produced utilising official tooling and gauges)
  • Replaceable TC rock-cutting pick teeth
  • Forward and rear facing jets with replaceable IDS TC Jet Nozzles
  • Available in standard sizes from 12” (300mm) diameter
  • One-piece central mandrels produced to API drill collar specifications
  • Welded in compliance with API Recommended Practice 5C6 (First Edition Dec. 1996)



Hybrid Reamer

Features:

  • Combination of Fly Cutter & Barrel Reamer for Maxi / Mega HDD Rigs
  • AISI 4145H central mandrel & heavy duty construction
  • 6.5/8” API FH, 5.1/2” API FH & NC50 connections
  • Hollow Bodies to aid buoyancy
  • Jet Nozzles connects directly to the central mandrel
  • Replaceable TC Jet Nozzles
  • Forward & Rear facing TC Jet Nozzles in “voids”
  • Compatible with both Kennametal & Betek Cutters

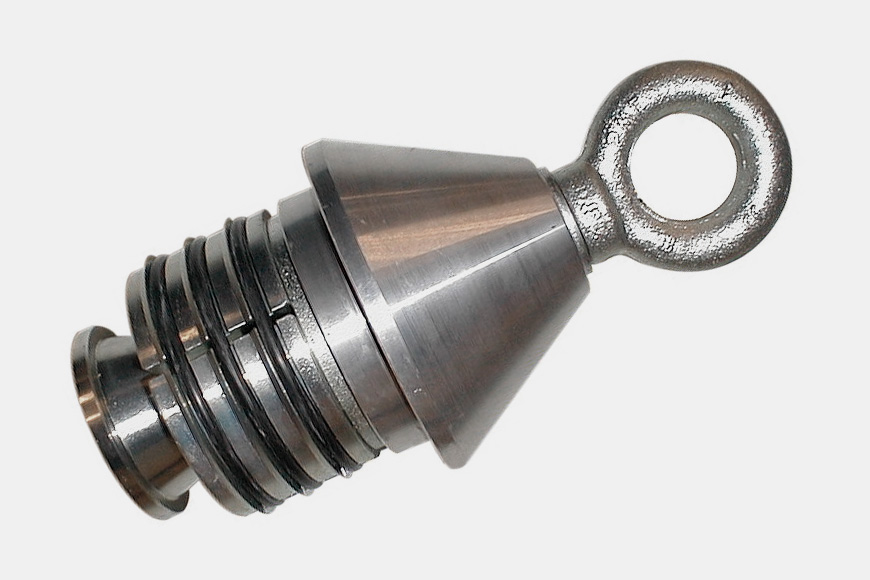

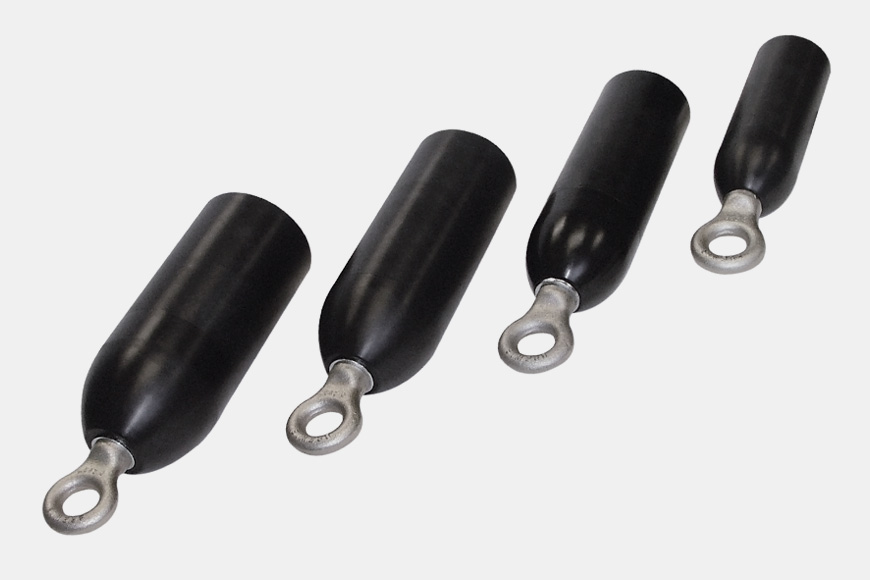

Standard Towing Heads

The Standard Towing Head is a simple device that attaches to the end of a piece of pipe to allow it to be pulled. It is designed for use with polyethylene pipe of wall thickness between SDR11 & SDR 17.6 on sizes up to 355mm.

It is operated by simply inserting it into the pipe and turning the eyebolt. The turning action draws a cone into four toothed segments which are forced into the wall of the pipe. The harder the eye is pulled the harder the pipe is gripped.



IDS X-Overs and Saver Subs

Helping our customers make the connection

  • An unrivalled range of drilling connections available including API, ‘OEM’ (HDD Rig) and IDS
  • API threads produced utilising official tooling and gauges
  • Expertly machined and gauged for proper stand-off
  • Available at short notice to customers’ specific requirements to ensure minimisation of downtime.

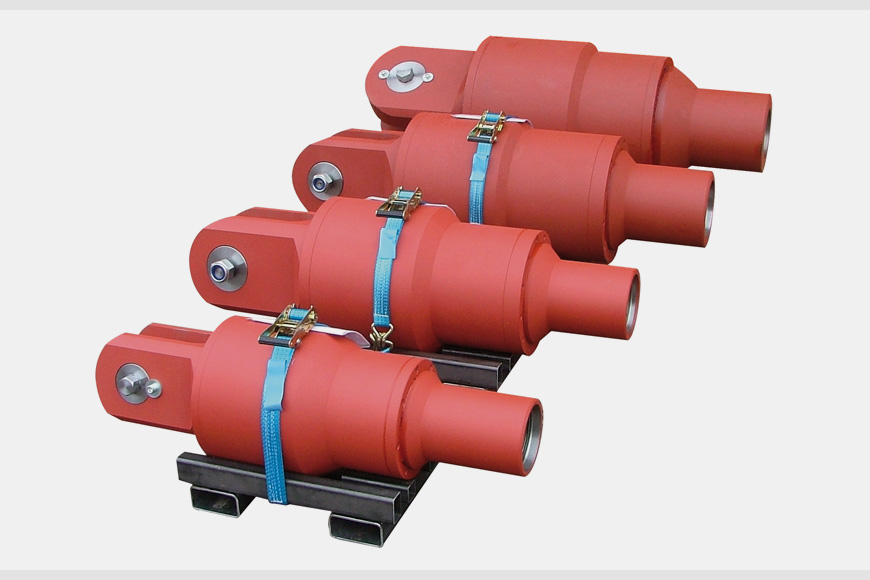

The IDS HDD & Integral Swivel

Specifically designed for security and reliability in directional drilling

Features:

  • Specifically designed for use in HDD applications
  • HDD Swivel is available in a range of sizes from 6 tonnes to 50 tonnes (larger sizes are available upon request)
  • Integral Swivel is available in standard sizes 15 and 30 tonnes
  • Integral Swivel compatible with IDS H1F and H2F Compaction Reamers – Fully interchangeable between reamers – one swivel may be used across a range of IDS H-Series reamer sizes
  • Manufactured throughout from high tensile 4145 steel
  • HDD Swivel has taper roller bearings, mounted in pairs, provide an operating capacity greater than the stated S.W.L.
  • The Integral Swivel has a heavy duty, four point angular contact ball bearing permits thrust in both directions, and an operating capacity greater than the stated S.W.L.
  • An advanced labyrinth sealing system excludes bentonite and debris from the bearing chamber
  • The Swivel is ‘self-bleeding’ – there is no risk of blowing out the seals through over-greasing and, consequently, no need for a pressure relief valve
  • One-piece Rotating Clevis and Main Shaft section is machined from a single steel billet for maximum strength
  • Clevis pins are retained using simple and highly effective ‘Nyloc’ Nuts
  • All threads are of a coarse design – carefully selected to minimise the danger of failure due to stripped threads
  • The Integral Swivel is Fully self-contained design for long life and ease of storage
  • Genuine built-in minimum safety factor
  • Low Maintenance – regular greasing and damage inspection is the only servicing required
