Venturi Water Pumps


To enquire about Venturi Water Pumps please call the number below or fill in our short enquiry form:

telephone icon  01226 785 722

Make an Enquiry

Download PDF

Overview

A rugged, simple and lightweight air operated pump that requires no priming and is capable of moving approximately 15,000 litres of water per hour, with a cost that is low enough to enable all crews to have one as standard equipment, thereby reducing waiting time and the high cost of hiring conventional equipment.

Unlike conventional pumping machines, the pump will not clog or seize up when faced with small stones, mud, slurry, sludge, etc and is ideal when fast and efficient removal of water is required.

In tests the pump when used with a single tool compressor, pumped water to a height of 4 ½ metres and is currently in use with the gas, water and electricity authorities as well as nationally known contractors.

  • No Moving Parts
  • Lightweight
  • Fast & Efficient
  • Cost Effective

Specifications

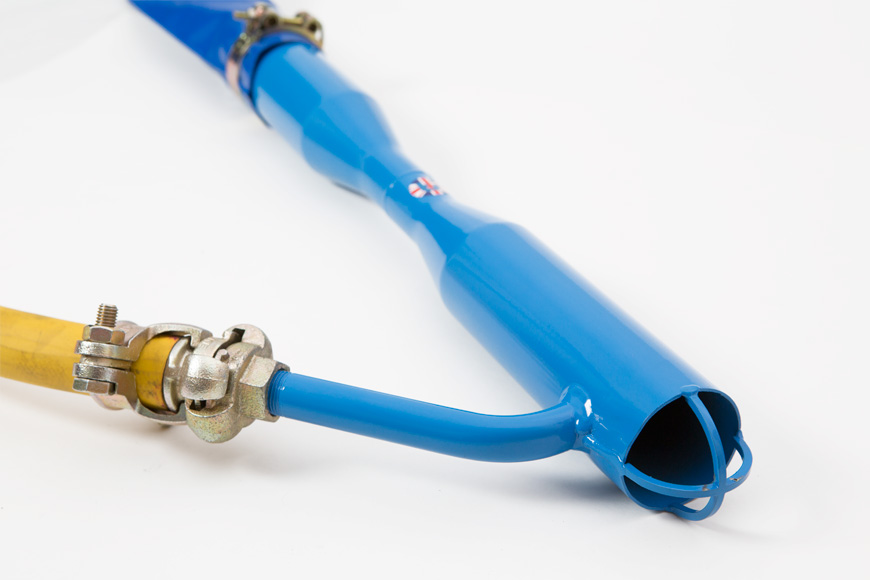

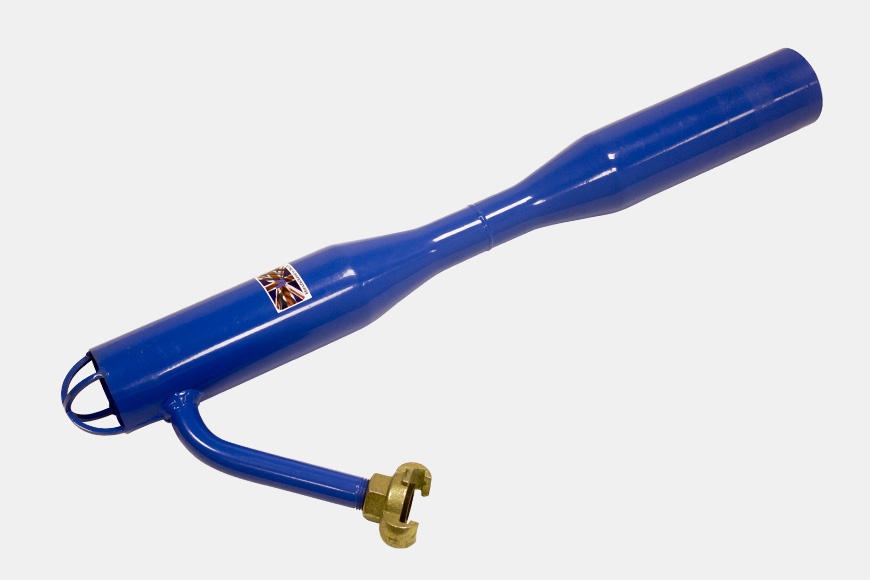

Cylindrical steel, Venturi type pump with standard claw couplings for air hose.
Overall Length 610 mm
Diameter 60 mm
Weight 3.2 kg
Air Pressure Required 80 cfm @ 100 psi compressed air at the nozzle
Lay-flat discharge hose available as optional extra.
